Structural Steel Pipe

Classification :

Structural Steel Pipe. A wide range of applications rely on structural steel pipe for strength and stability. Gnee steel supply welded and seamless pipe for structural applications to customers in all industries. As a leading steel pipe supplier, Gnee steel offers a large inventory of pipe and tubing sizes from 1/8” NPS to 48” NPS.

E-mail: sales08@sdhairongjinshu.com

Whatsapp: +86-15726531198

RELATED PRODUCTS

ONLINE MESSAGE

Keywords:

Seamless Pipe

PRODUCT DETAILS

Product introduction

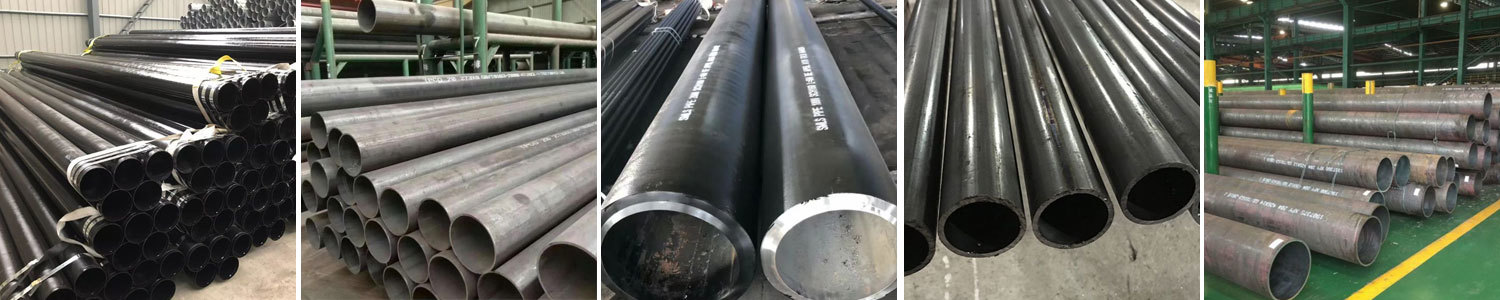

Structural Steel Pipe

Pipe Type: Structural Pipe, Structural Seamless Pipe, Seamless Structural Pipe
Application: In Structural Engineering and Construction Industry

Specification: OD: 1/8'' ~ 26'' (10.3 ~ 660mm)

WT: SCH 10 ~ 160, SCH STD, SCH XS, SCH XXS

LENGTH: Fixed Length (5.8/6/11.8/12mtr), SRL, DRL

Standard: ASTM A53/A252/A500/A501, JIS G3444, EN 10210/10219

Ends: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends

Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating

Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped

Specification of Structural Steel Pipe

API 5L/ASTM A106 GR.B, Structural Steel Pipe
公称通径 DN	外径OD(mm)	SCH40(6m/5.8m)	SCH40(6m/5.8m)	SCH40(6m/5.8m)
		SCH40(6m/5.8m)	SCH40(6m/5.8m)	SCH40(6m/5.8m)
		壁厚WT	壁厚WT	壁厚WT
		(mm)	(mm)	(mm)
1/4''	13.7	2.24	3.02	/
3/8''	17.1	2.31	3.2	/
1/2''	21.3	2.77	3.73	4.78
3/4''	26.7	2.87	3.91	5.56
1''	33.4	3.38	4.55	6.35
1-1/4''	42.2	3.56	4.85	6.35
1-1/2''	48.3	3.68	5.08	7.14
2''	60.3	3.91	5.54	8.74
2-1/2''	73	5.16	7.01	9.53
3''	88.9	5.49	7.62	11.13
3-1/2''	101.6	5.74	8.08	/
4''	114.3	6.02	8.56	13.49
5''	141.3	6.55	9.53	15.88
6''	168.3	7.11	10.97	18.26
8''	219.1	8.18	12.7	23.01
10''	273	9.27	15.09	28.58
12''	323.8	10.31	17.48	33.32
14''	355.6	9.53	11.13	19.05
16''	406.4	9.53	12.7	21.44
18''	457	9.53	14.27	23.83
20''	508	9.53	15.09	26.19
24''	610	9.53	17.48	30.96

Technical data

Structural Steel Pipe Chemical Composition and Mechanical Properties

Standard	Grade	Chemical Composition (%)					Mechanical Properties
ASTM A53	Grade	C	Si	Mn	P	S	Tensile STrength(Mpa)	Yield STrength(Mpa)
	A	≤0.25	-	≤0.95	≤0.05	≤0.06	≥330	≥205
	B	≤0.30	-	≤1.2	≤0.05	≤0.06	≥415	≥240
ASTM A106	A	≤0.30	≥0.10	0.29-1.06	≤0.035	≤0.035	≥415	≥240
ASTM A106	B	≤0.35	≥0.10	0.29-1.06	≤0.035	≤0.035	≥485	≥275
ASTM A179	A179	0.06-0.18	-	0.27-0.63	≤0.035	≤0.035	≥325	≥180
ASTM A192	A192	0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035	≥325	≥180
API 5L PSL1	A	0.22	-	0.90	0.030	0.030	≥331	≥207
	B	0.28	-	1.20	0.030	0.030	≥414	≥241
	X42	0.28	-	1.30	0.030	0.030	≥414	≥290
	X46	0.28	-	1.40	0.030	0.030	≥434	≥317
	X52	0.28	-	1.40	0.030	0.030	≥455	≥359
	X56	0.28	-	1.40	0.030	0.030	≥490	≥386
	X60	0.28	-	1.40	0.030	0.030	≥517	≥448
	X65	0.28	-	1.40	0.030	0.030	≥531	≥448
	X70	0.28	-	1.40	0.030	0.030	≥565	≥483
API 5L PSL2	B	0.24	-	1.20	0.025	0.015	≥414	≥241
	X42	0.24	-	1.30	0.025	0.015	≥414	≥290
	X46	0.24	-	1.40	0.025	0.015	≥434	≥317
	X52	0.24	-	1.40	0.025	0.015	≥455	≥359
	X56	0.24	-	1.40	0.025	0.015	≥490	≥386
	X60	0.24	-	1.40	0.025	0.015	≥517	≥414
	X65	0.24	-	1.40	0.025	0.015	≥531	≥448
	X70	0.24	-	1.40	0.025	0.015	≥565	≥483
	X80	0.24	-	1.40	0.025	0.015	≥621	≥552

Structural Steel Pipe Chemical Composition and Mechanical Properties

Standard

Grade

Chemical Composition

Mechanical Properties

Tensile Strength(Mpa)

Yield Strength(Mpa)

Elongation(%)

GB/T8163

0.07-0.14

0.17-0.37

0.35-0.65

≤0.035

≤0.15

≤0.25

335-457

≥205

≥24

0.17-0.24

0.17-0.37

0.35-0.65

≤0.035

≤0.25

410-550

≥245

≥20

Q345

0.12-0.20

0.20-0.55

1.20-1.60

≤0.045

490-665

≥325

≥21

Structural Steel Pipe Tolerance

Pipe types	Pipe Szie(mm)		Tolerances
Hot rolled	OD	All	±1% (min ±0.50mm)
Hot rolled	WT	All	+15%, -12.5%
Cold drawn	OD	6～10	±0.20mm
		10～30	±0.40mm
		30～50	±0.45mm
		>50	±1%
	WT	≤1	±0.15mm
		>1～3	+15% -10%
		>3	+12.5% -10%

Structural Steel Pipe End

Plain End	Wall Thickness less than 0.5 inch, including SCH STD & SCH XS
Plain End (Square Cut)	Wall Thickness over 0.5 inch, including SCH XXS
Beveled End	Wall Thickness less than 0.5 inch, including SCH STD & SCH XS
Couplings	Outside Diameter equal or less than 2''
Thread Protection	Outside Diameter over 4 inch

PACKING AND DELIVERY

Packing and delivery

The company is a comprehensive steel production and supplier based in China and serving the world, providing domestic and foreign buyers with a full range of services including production, procurement, marketing, processing, logistics, and information.

FACTORY APPEARANCE

Strong manufacturing capabilities and complete industrial chain support. The factory covers an area of 20,000 square meters, with 8 advanced fully automatic cold bending production lines, 6 new hot rolling production lines, more than 20 feeders, 2 environmentally friendly hot-dip galvanizing production lines, and 2 oxygen-free annealing furnaces, maintaining an annual production capacity of 300,000 tons of steel.

APPLICATION AREAS

Widely used in automobile, petroleum, railway, bridge, construction, electric power, transportation, machinery, Marine light industry, home appliances, kitchen and other important fields. With excellent product quality, good reputation and innovative marketing concept,it ispopular at home and abroad.
